Series of small scale oil press
These small scale screw type oil presses are advanced oil processing machinery, characterized by their high oil output rate with good quality, simple design, easy to use and continuous operation. They can use for various raw material, such as peanut, beans, rape and cotton seeds, sesame, olive, sunflower, coconut, grass seed etc.
Model |
Capacity
|
Power |
Weight |
Outside dimension |
pictrue |
YZS-68oil press |
50kg/h |
5.5kw |
140kg |
920*490*780mm |
|
YZS-80oil press |
100kg/h |
5.5kw |
330kg |
1320*540*1020mm |
YZS-95oil press |
150-200kg/h |
7.5-11kw |
620 kg |
1620*630*1260mm |
YZS-100oil press |
200kg/h |
7.5kw |
80 kg |
1640*640*1200mm |
 |
YZS-120oil press |
250kg/h |
11kw |
650 kg |
1820*630*1300mm |
ZX105oil press |
200-300kg/h |
11kw |
520 kg |
1870*640*1200mm |

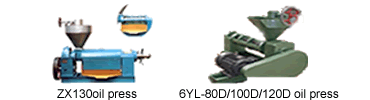

ZX130oil press |
400-500kg/h |
18.5kw |
820 kg |
1930*680*1480mm |
 |
YZS-80Doil press |
100kg/h |
5.5kw |
450kg |
1320*1300*1020mm |
YZS-100Doil press |
200kg/h |
7.5kw |
610kg |
1640*1300*1200mm |
YZS-120Doil press |
250kg/h |
11kw |
780kg |
1940*1300*1300mm |
Series of large scale oil press/Oil Expeller
This large scale oil machine is suitable for extraction of vegetable oils from such oil-bearing materials as rape seed, peanuts, sesame seed, cotton seed, soy beans, coconuts, tea seed, sunflower seed, etc. The model LYZX18 cold-pressing expeller is a new generation of low-temperature screw oil press. Oil processed with this expeller is characterized by light color, top quality and rich nutrition and conforms to the standard of international market. It is also the main machine for making protein power of peanut, soybean, sunflower kernel etc.
Model |
Capacity |
Power |
Weight |
Outside dimension |
Pictrue |
LYZX18oil press |
6-10t/d |
27.2kw |
3500kg |
3176*1850*2600mm |
|
|
200A-3oil press |
8-12t/d |
18.5kw |
5000kg |
2850*1850*3270mm |
ZX24oil press |
20t/d |
36.5kw |
8500kg |
3200*1850*3600mm |
ZX28oil press |
50t/d |
45kw |
11500kg |
3700*1920*3850mm |
ZX32/ZY32oil press |
85-110t/d |
90/110kw |
11000 kg |
4100*2720*3850mm |
202-3oil press |
45-50t/d |
30kw |
5500 kg |
2900*1850*3640mm |
|
|
