Pellet Dust Filter

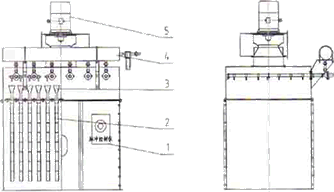

TBLMY Series Impulse Dust Collecter |
|
|
|
|
|
Feature:
Special Design of Jet-blow device, Frame Structure, Disassemble and Maintain Easy.
Square Meter Filter Capacity for per hop-pocket, Low Occupied Area.
Our Series include TBLMY4, 9, 12, 15, 21, 28, 40, 56 |
| Parameter: |
| Model |
No. of Bags(Pcs) |
Filter Area(m 2) |
Wind Capacity(m 3/h) |
Pressure of Compressed Air(Pa) |
Impulse time(s) |
Impulse Period(min) |
Power(kw) |
Filter Efficiency(%) |
| TBLM4 |
4 |
4 |
900—1600 |
0.5-0.7 |
0.03~0.2 |
1.3~26 |
1.5 |
99.9 |
| TBLM9 |
9 |
9 |
1900—2700 |
0.5-0.7 |
0.03~0.2 |
1.3~26 |
2.2 |
99.9 |
| TBLM12 |
12 |
12 |
2100—3600 |
0.5-0.7 |
0.03~0.2 |
1.3~26 |
3.0 |
99.9 |
| TBLM24 |
24 |
24 |
3800—6300 |
0.5-0.7 |
0.03~0.2 |
1.3~26 |
4 |
99.9 |
| TBLM40 |
40 |
40 |
8400—12000 |
0.5-0.7 |
0.03~0.2 |
1.3~26 |
7.5 |
99.9 |
| TBLM56 |
56 |
56 |
9000—15000 |
0.5-0.7 |
0.03~0.2 |
1.3~26 |
7.5 |
99.9 |
|
|
|
