Biomass Briquette Plant

Charcoal / Biomass Briquette Plant for Agro-forestry Wastes

Due to the rapid increase in the need of energy source, more people start to get interested in Charcoal / Biomass Briquetting business. Charcoal / Biomass Briquette are Renewable, Eco-friendly Energy especially for agricultural countries.

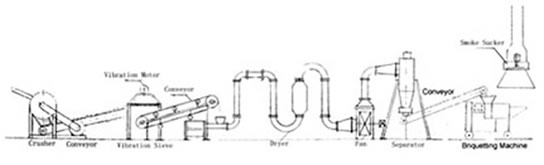

Flowchart of the Charcoal / Biomass Briquetting Technology:
Raw material ------ crusher------drier-------biomass / charcoal briquetting machine ----carbon bar furnace-----finished product

Laboratory Test Report of Paddy Husk & Saw Dust Charcoal

No Name Of Test Paddy Husk Charcoal Saw Dust Charcoal
01 Moisture Content (%wt) <=5 <=7
02 Ash Content (%wt) 1<=0 <=5
03 Fixed Carbon (%wt) >=65 <=80
04 Calorific Value Kcal/kg >=7500 <=8000
05 Volatile matter (%) >=6 <=8.5
06 Smell Acceptable Smell in Burning Condition Acceptable Wood Smell
07 Smoke Burning Without Smoke Burning With slight Smoke
08 Hard ness Normal (Easy burning) Normal (Easy broken & burning)

1.Crusher Wood Chipper
Crusher
Wood Chipper

Capacity(kg/h) Diameter of feeding material (mm) Max. size of crush (mm) Motor(kw) Overall dimension (mm)
350-650 <=ø80 Ø5*5 7.5 / 11kw 1800*700 *800
750-1000 <=ø100 Ø5*5 18.5kw 2300*1000*1400

2. Dryer
  yer

Model Capacity Grain Size (Diameter) Temperature of Hot Air
 Power
BHG-I 300-500kg H2o/1hour
 < 20mm 180C~250C 4kw
BHG-II 600-800kg H2o/1hour
 < 20mm 180C~250C 5.0kw

3. Biomass / Charcoal Briquetting Screw Press:
Charcoal Briquette MachineCharcoal Briquette Machine
Output (kg/h) Motor Power (kw) Electric heater (kw) Size of products (mm)
150-200 15
 3*1.5 Ø45-55
250-300 11
 3*1.5 Ø45-55
750-1000 30 3*1.5 Ø50-100

4. Carbon Bar Furnace
Carbon Bar Furnace
Carbon Bar Furnace
New Advanced Air Current Carbon Bar Furnace
Model Output (kg/6h) Furnace temperature(C) Consumption of Fue
I 300
 430 30kg
II 400
 430 40kg

Old Carbon Bar Furnace

Model Output (kg/6h) Furnace temperature(C) Consumption of Fue
I 100-150
 430 5-10kg / 1.5kw
II 200-250
 430 10-15kg / 1.5kw
