Wood Crusher
The following two types of crushers are fitted to make sawdust for the downstream equipments. Please choose proper types according to the types and size of your raw material.
GC-FSCI Wood Crusher
GC-FSCI Wood Crusher is suitable for crushing raw wood with size less than 200mm(diameter). After milled, the output size can reach diameter 3-5mm , which is suitable for further briquetting.
| Model |
GC-FSCI Wood Crusher For fresh or dried raw wood |
 |
|---|---|---|
| Capacity(kg/h) | 400-500 | |
| Diameter of Feeding Material | Not more than 150-200mm | |
| Size of crushed material | Max. Ø5X5mm | |
| Motor | 11kw | |
| Gross/Net Weight | 400/350kg | |
| Overall Dimension (mm) | 1250*700 *910 |
GC-FSC II Hammer Mill
GC-FSCII Hammer Mill is suitable for milling raw material like tree branch, tree trimmings, cotton stalk, corn stalk, wheat straw etc) with size less than 50mm(diameter). After milled, the output size can reach diameter 3-5mm , which is suitable for further briquetting.| Model |
GC-FSC II Hammer mill for wood chip/tree trimmings/wheat straw/plant stalk |
 |
|---|---|---|
| Capacity(kg/h) | 500-700 | |
| Size of Feeding Material |
Max. diameter 50mm No limit for length |
|
| Size of milled material | Ø5X5mm | |
| Motor | 18.5kw | |
| Gross/Net Weight | 550/650kg | |
| Overall Dimension (mh) | 1250*700 *910 | |
| Cyclone (2400*800*800) |
For proper working of biomass briquette press and drying machine in the biomass briquetting plant,size of biomass waste is important. There are two types of crushing machine available for make suitable size sawdust or biomass grain for following drying machine and biomass briquette press in biomass briquetting plant. The choose of proper model depend on the types and size of your raw material.
GCFSD Wood Crusher
| Model | Dia. of Feed Material | Size of Crushed Material | Power | Gross/Net Weight | Overalll Dimension (mm) | Capacity (kg/h) |
|---|---|---|---|---|---|---|
| GCFSD-I Wood Crusher | 400-500 | No more than 150-200 mm | Max.ø5×5mm | 11kw electric motor | 400/350kg | 1250×700×910 |
| GCFSD-II Wood Crusher | 15HP diesel engine | 600/550kg |
In the biomass briquetting plant, GCFSD series Wood Crusher/ pulverizer is suitable for preparing sawdust or biomass small grains for briquette press and dryer. It can crush raw wood of size less than 200mm(diameter) into size of 3-5mm(diameter).
It is necessary to use a wood crusher if your raw material is raw wood. Wood crusher can process raw and fresh wood with size less than 200mm (diameter). After crushed, the output size can reach diameter 3-5mm, which is suitable for further briquetting or drying.
The wood crusher produced by our company is a kind of newly-developed wood crushing equipment for raw wood, which is an innovation on the basis of traditional crusher-making theories both home and abroad. It is composed of machine body, knife chipping part, chips re-crushing part and sieving part, etc. It combines both chipping and crushing in one machine, can make sawdust in one passage, no need to use wood chipper for pre-processing of wood logs.
To ensure security, the feed inlet of this machine adopts self-suction design to avoid serious damage to operators.
It has the advantage of low investment and energy consumption, high output, high-quality finished products, easy to operate and miantain, etc.

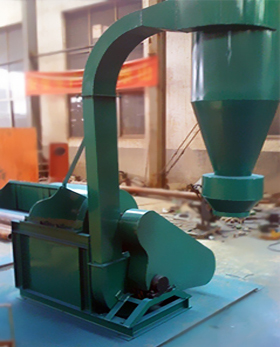

GCFSC Hammer Mill
GCFSC-I Hammer Mill with Electrical Motor
GCFSC-II Hammer Mill with Diesel Engine
GCFSC-I Hammer Mill with Diesel Engine and Electrical Motor for Dual-purpose
New Model - CF500 Hammer Mill
| Model | Capacity (kg/h) | Dia. of Feed Material | Size of Crushed Material | Power | Gross/Net Weight | Overalll Dimension (mm) |
|---|---|---|---|---|---|---|
| GCFSC-I Hammer Mill | 500-700 |
Max. Dia. 50mm No limit for length |
Max.ø5×5 mm | 18.5kw electric motor | 550/650kg |
Crusher: 1700×1150×1200 Cyclone: 2400×800×800 |
| GCFSC-II Hammmer Mill | 18HP diesel engine | |||||
| GCFSC-III Hammer Mill |
Double Power Supply for Dual Purpose for use 18HP Diesel + 18.5kw Motor |
|||||
In the biomass briquetting plant, GCFSC Hammer Mill is suitable for preparing suitable size raw material for briquette press and dryer. It can mill raw material like tree branch, tree trimmings,wood chips, wood cuttings, cotton stalk, corn stalk, wheat straw etc) of size max. 50mm(diameter). After milled, the output size can reach diameter 3-5mm , that is good for working of following dryer and briquette press.
The GCFSC hammer mill is a machine whose purpose is to shred material into fine particles. A hammer mill is eassentially a steel drum containing or horizontal cross-shaped rotor on which pivoting hammers are mounted. The hammers are free to swing on the ends of the cross. The rotor is spun at a high speed inside the drum while material is fed into a feed hopper. The material is impacted by the hammers on the ends of the rotating cross and thereby is shredded and explled through screens in the drum.
