Rail Clip

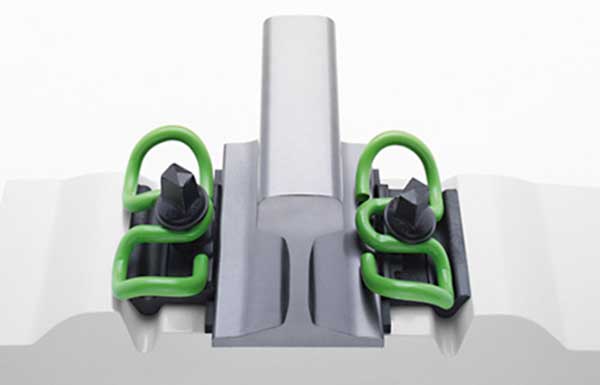

Rail clip, or elastic rail clip, is used to secure the rail to the underlying tie plate. By bending and deforming, the rail clamps can exert pressure on the rails to prevent longitudinal movement of the rail due to temperature changes and vibrations. Usually, the track clip is made of spring steel processed by hot forging method. With the most uniform microstructure, forged rail clips are considered better than other metal forming processes.
AGICO Rail Clips
As a professional track clamp manufacturer and supplier, AGICO is committed to providing a variety of high standard rail clips and comprehensive product tracking services. AGICO rail clips adopt high-precision design, made of high-grade spring steel. With over 20 years’ experience in railway clip production, AGICO has become China's largest and most competitive railway fixture production base, qualified to tender national large and medium-sized railway projects hosted by China Railway Corporation.
In addition, we have the most advanced rail clip production line, from cutting materials, intermediate frequency heating, three stamping, quenching, tempering, inspection to packaging. Our daily production capacity is 100,000 rail clamp. Our rail clip can be customized according to the requirements of clients.
Varieties of Rail Clips
| Series | Type | Hardness | Material | Fatigue life | Surface | Standard |
|---|---|---|---|---|---|---|
|
E rail clip |
E1,E2,E3 | 44-48HRC |
60Si2MnA: C:0.56-0.64,Mn:0.60-0.90, Si:1.60-2.00,Cr:≤0.35, P:≤0.03, S:≤0.03 60Si2CrA: C:0.56-0.64,Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 55Si2Mn: C:0.52-0.60,Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 38Si7:C:0.35-0.42,Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
For Dia.18 is 3 million cycles without breaking. For Dia.20 is 5 million cycles without breaking. |
plain (oiled), Oxide black, color painting or according to customer requirement. |
DIN17221, BS970, GB/T1222 |
| E1609 | ||||||
| E1809 | ||||||
| E1817 | ||||||
| E2001 | ||||||
| E2006 | ||||||
| E2009 | ||||||
| E2055 | ||||||
| E2056 | ||||||
|
Vossloh clip& Forged rail clip |
SKL1 | 42-47HRC | ||||
| PR rail clip | PR309 | 44-48HRC | ||||
| PR401 | ||||||
| PR601 | ||||||
| PR85 | ||||||
| Customized production of rail clips are available according to your drawings or samples! | ||||||

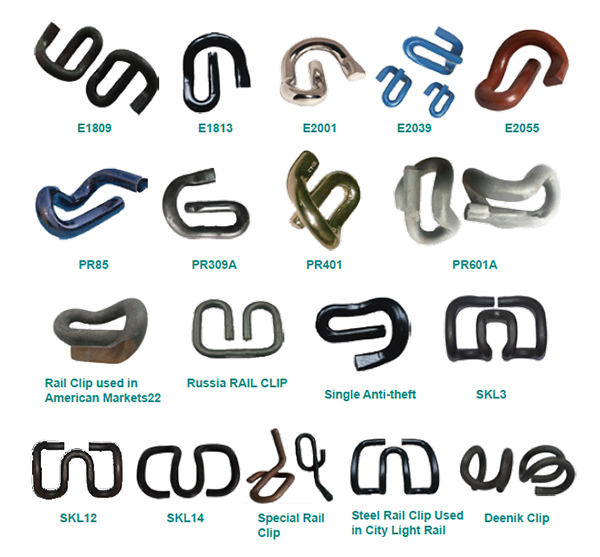

Parameters of various types of Rail Clip
| Model | Diameter | Weight | Material |
|---|---|---|---|
| Type III | Ø18 | 0.80kg/pc | 60Si2MnA |
| E1609 | Ø16 | 0.43 kg/pc | 60Si2MnA |
| E1809 | Ø20 | 0.61kg/pc | 60Si2MnA |
| E1813 | Ø18 | 0.62kg/pc | 60Si2MnA |
| E2001 | Ø20 | 0.80kg/pc | 60Si2MnA |
| E2007 | Ø20 | 0.80kg/pc | 60Si2MnA |
| E2009 | Ø20 | 0.80kg/pc | 60Si2MnA |
| E2039 | Ø20 | 0.80kg/pc | 60Si2MnA |
| E2055 | Ø20 | 0.80kg/pc | 60Si2MnA |
| E2056 | Ø20 | 0.80kg/pc | 60Si2MnA |
| E2063 | Ø20 | 0.80kg/pc | 60Si2MnA |
| PR85 Rail Clip | Ø13 | 0.25kg/pc | 60Si2MnA |
| PR309A | Ø19 | 0.85kg/pc | 60Si2MnA |
| PR401 | Ø20 | 0.97kg/pc | 60Si2MnA |
| PR415 | Ø20 | 0.95kg/pc | 60Si2MnA |
| PR601A | Ø20 | 1.03kg/pc | 38Si7 |
| SKL 1 | Ø13 | 0.48kg/pc | 60Si2CrA |
| SKL 3 | Ø13 | 0.48kg/pc | 60Si2CrA |
| SKL 12 | Ø13 | 0.53kg/pc | 38Si7 |
| SKL 14 | Ø13 | 0.53kg/pc | 60Si2MnA |
| Special Rail Clip | Ø13 | 0.48kg/pc | 60Si2MnA |
| Russia Rail Clip | Ø18 | 0.58kg/pc | 60Si2MnA |
| Deenik Clip | Ø25 | 0.49-0.68kg/pc | 60Si2MnA |
|
Single Anti- Theft |
Ø20 | 0.25kg/pc | 60Si2MnA |
Rail clips production process
Raw material gathering—Shearing—heating to forging temperature—Forming—Hardening—Tempering—Surface Treatment—Inspection—Packing
The Spring steel bars should first be cut as required. By convention, the sheared bar is heated to 950 ° C to 1000 ° C, and then the heated rod is transferred to a power press for forging. Before hammering, keep three sets of molds and fixtures according to the drawings. The forged rail clips are conveyed to the quench tank. After checking the dimensional accuracy and the quenching hardness, the rail clips are sent to the next tempering procedure to achieve proper toughness in the spring. The final product will be packaged after rigorous inspection.
Quality control System
We carried out rigorous test and fully authentication on every manufacture steps of rail clips. Meanwhile, a complete set of quality control systems from raw material procurement to finished products packaging. We have a professional inspection team to check every process of the production line.
Inspection machines for finished rail clips
- Brinell Hardness Tester
- Carbons and Sulfur Analyzer
- Rockwell Hardness Machine to test metallic materials
- Automatic Impact Testing Machine
- Metallographic Microscopes
- Automatic High-Speed Analyzer
- Fatigue Testing Machine
- Metallographic Specimen Polishing Machine
- Metallographic Specimen Pointing Machine
