Small Set of Flour Mill Plant

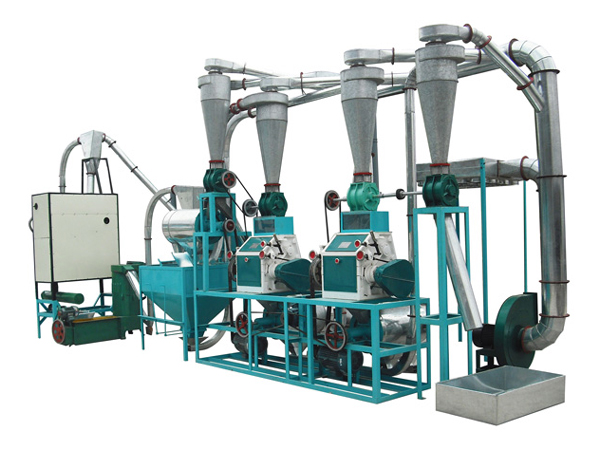

M6FTY-10 Type Flour Mill Plant
M6FTY-10 small scale flour mill plant is a complete set of flour milling machines. It is regarded as a scaled-down version of the large one. You can achieve high efficiency with low investment. The small set of flour mill plant features scientific design and continuous production, little space taking, easy to operate and maintain.
Performance features of M6FTY Flour Mill Plant
- The flour mill plant can be customized according to your requirement.
- The whole plant cover a space of 6.6X3.8X3.5(m)
- The power consumption is 26.5kw, which is under the state standard.
- The tempering tank has 2 parts, with the size of each is L x W x H=0.9x1.5x1.5(m)
Main flour milling machines
No | Name of equipment | Specification | Number |
---|---|---|---|
1 | flour-milling machine | M6FY-35 | two sets |
2 | Fan | 6-23NO-5C | one set |
3 | Fan | 8-18NO-4A | one set |
4 | reel separator | 30 style | four sets |
5 | stoner | QS-40 | one set |
6 | scourer | 6NF-90 | two sets |
7 | air-lock | GFY-150 | four sets |
8 | sliding separator | 30 style | one set |
9 | auger | 150x1000 | one set |
10 | beater | 20 | one set |
